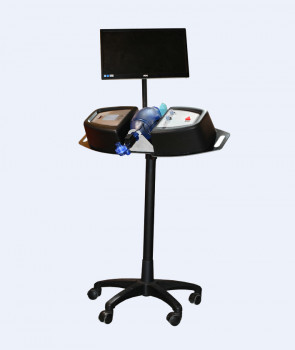

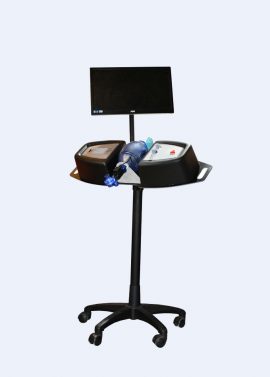

Alternative breathing device has been developed for emergency purposes, it can operate without being connected to any energy source thanks to its battery and can be carried easily with the carrying arms on both sides. The Ambu device on the alternative breathing apparatus was left out so that it can be renewed in each patient. When the system is closed, both arms pressing on the Ambu device are pulled to the back gently, allowing the healthcare personnel to be changed easily. The H13 class HEPA filter with 0.3% micron diameter particles located in the patient air exhaust part of the Ambu device connected to the sensor outlet provides 99.95% protection for the health personnel using the device. The 3.5 TFT touch LCD screen on the device has the feature of assembling and monitoring the patient's respiratory rate, airway pressure, oxygen concentration in the blood, and heart rhythm by refreshing it 60 times per second. Two pressure sensors in the apparatus placed in the mouth of the Ambu device and alternative breathing device pressure sensors perform backup and verification within themselves. Thus, in case of any sensor malfunction, the device turns itself off in order not to harm the patient.
Physical Features
Weight:
4.5 kg
Dimensions (width x length x height):
270mm x 780mm x 152mm
Diameter of connection apparatus:
Standart ISO 20 mm External Diameter
Airway volume:
3000 ml
Features of Power Adapter
Voltage:
240V
Frequency:
60Hz
Consumption:
5Ah maximum
Battery Features
Voltage:
14.4v
Battery Capacity:
5Ah
Watt-hour Value:
72Wh
Average working time with full battery (environmental temperature 25 C)
Breathing Number =30 PIP - 60cmH2O 30 minutes
Breathing Number =10 PIP - 20cmH2O 45 minutes
Performance
Settings
Operating Range
Operating Tolerance
Volume:
150 - 3000ml
±10%
Pressure:
5 -60 cmH2O
±5%
Pressure Time:
2 - 6 second
±5%
Breathing Number:
10 - 30
±1
İnspirium Expirium Rate:
1:4 - 1:1
±10%
Device Parameters
Monitored Parameters
Tolerances
Airway Pressure
±5%
Breathing Number
±1
Oxygen Saturation
±5%
Cardiac Rhytmm
±5%
Product Code: ASC01
